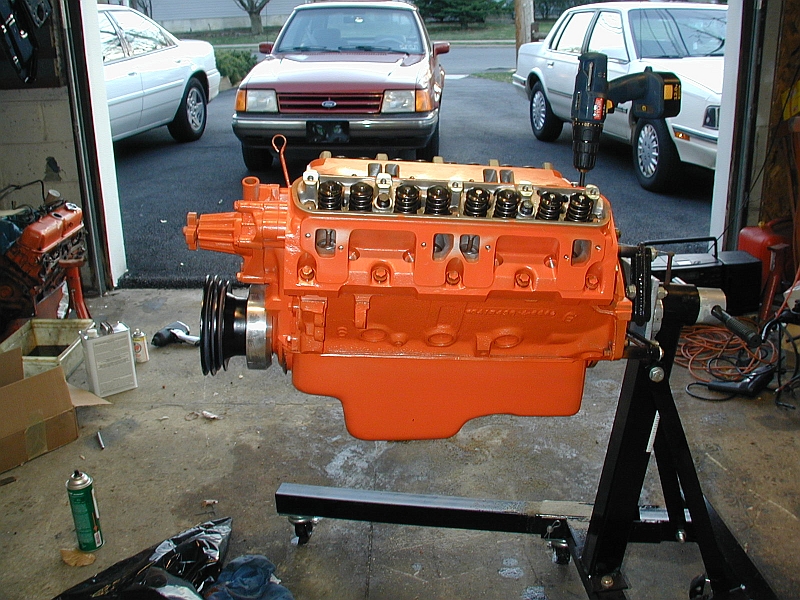

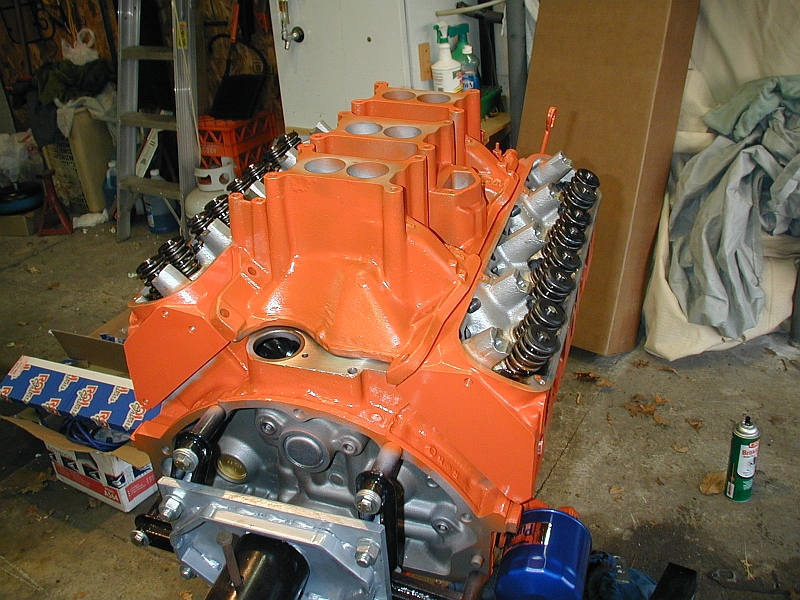

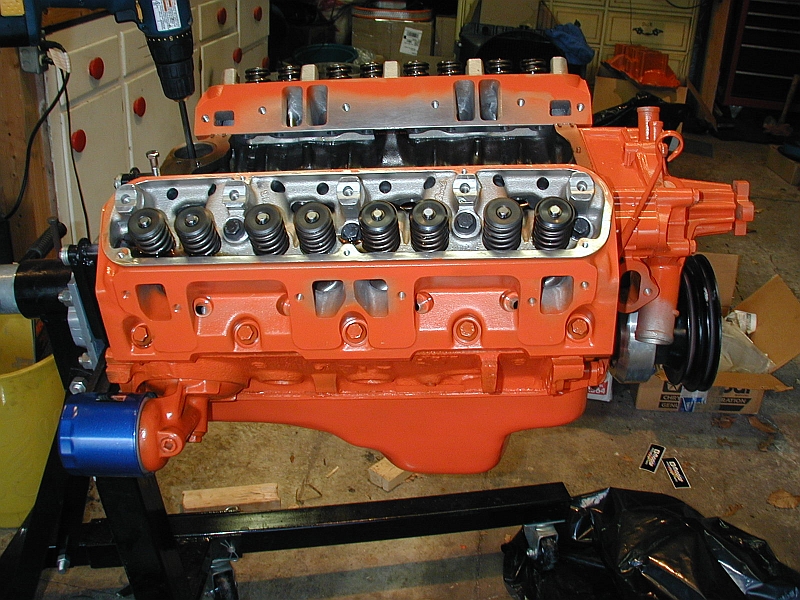

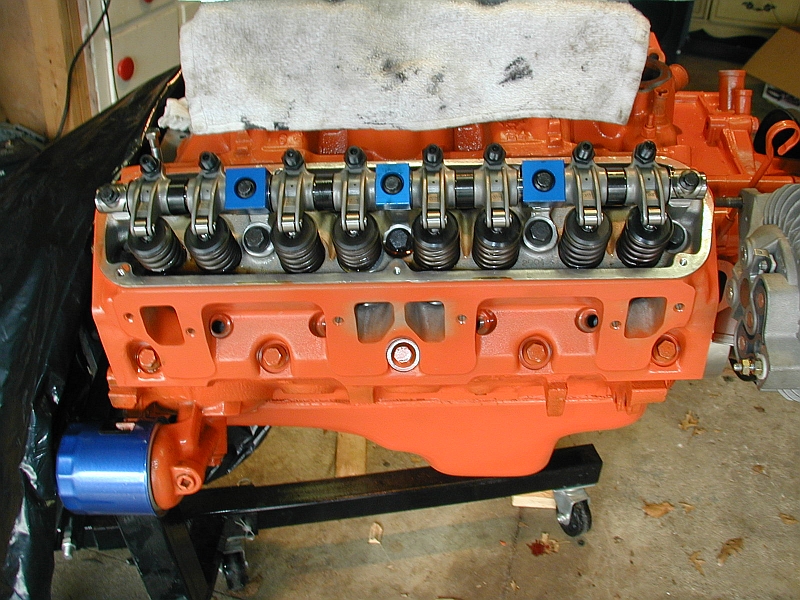

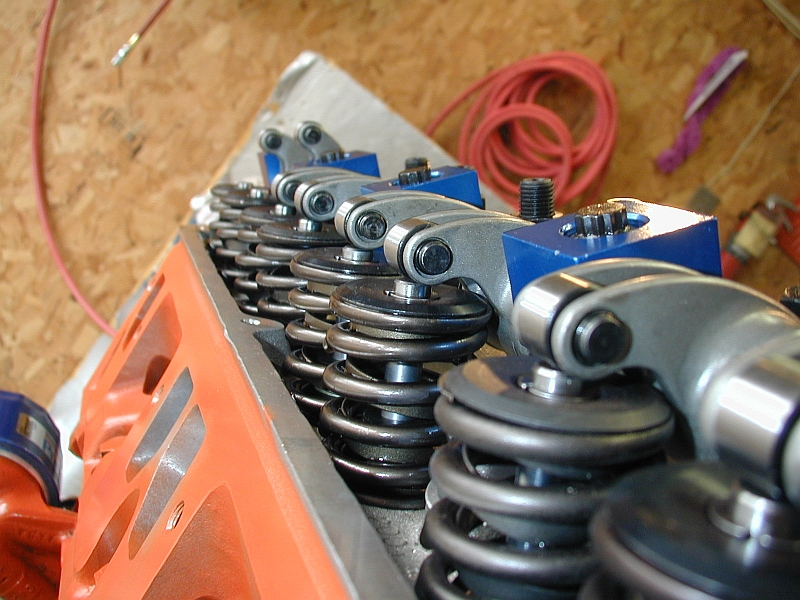

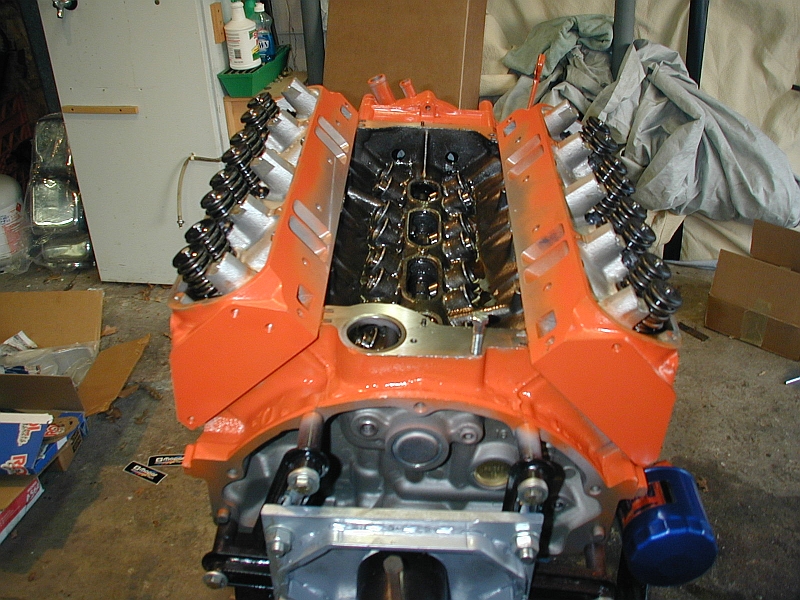

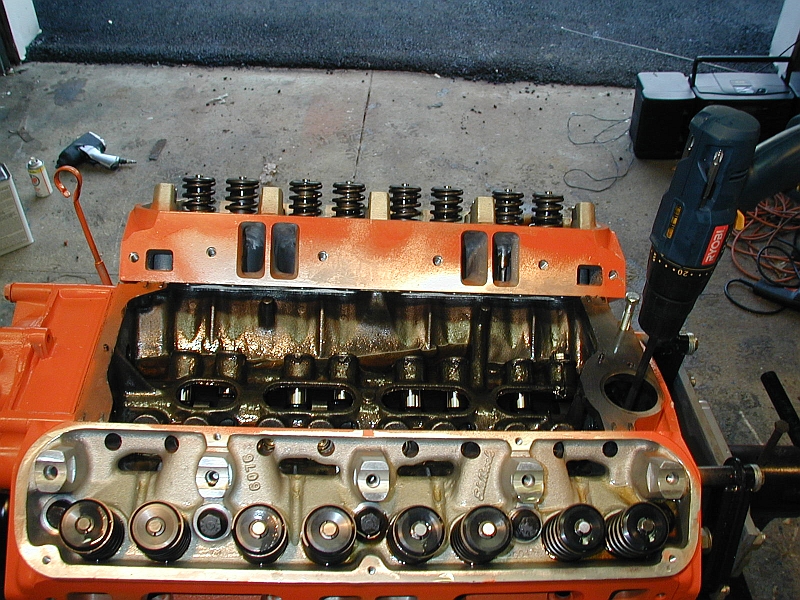

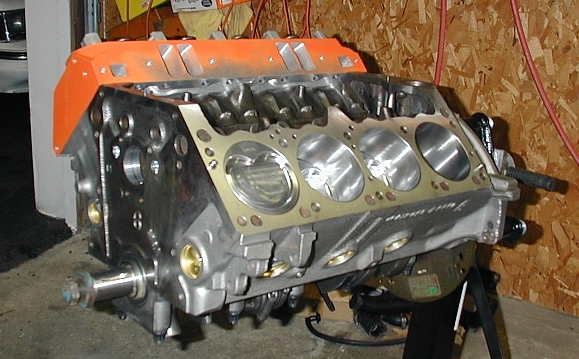

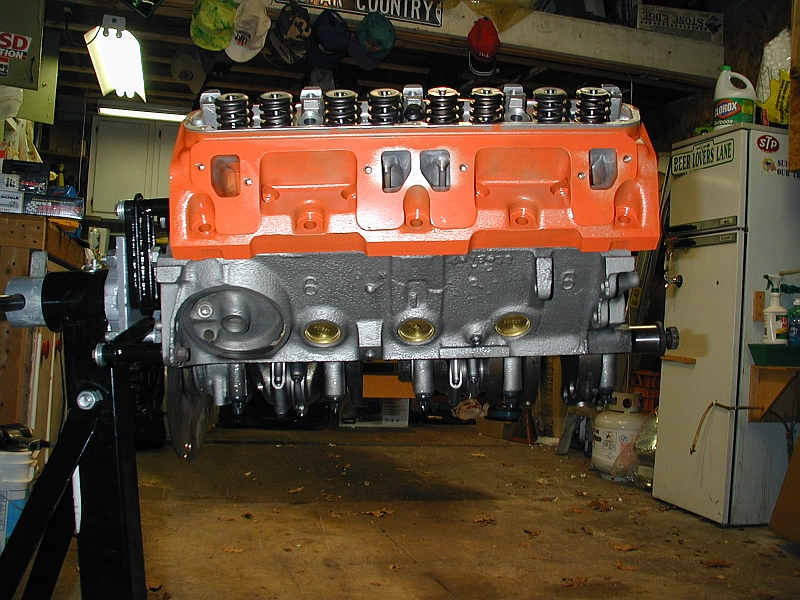

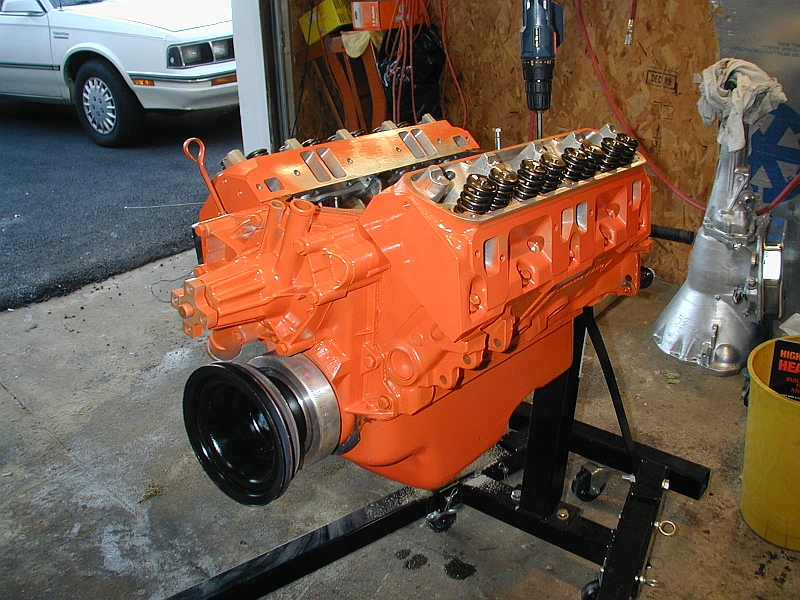

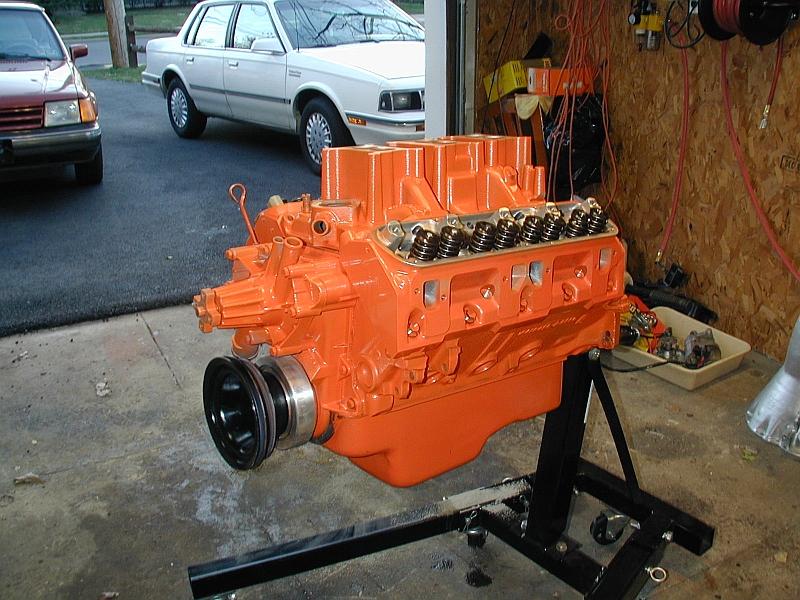

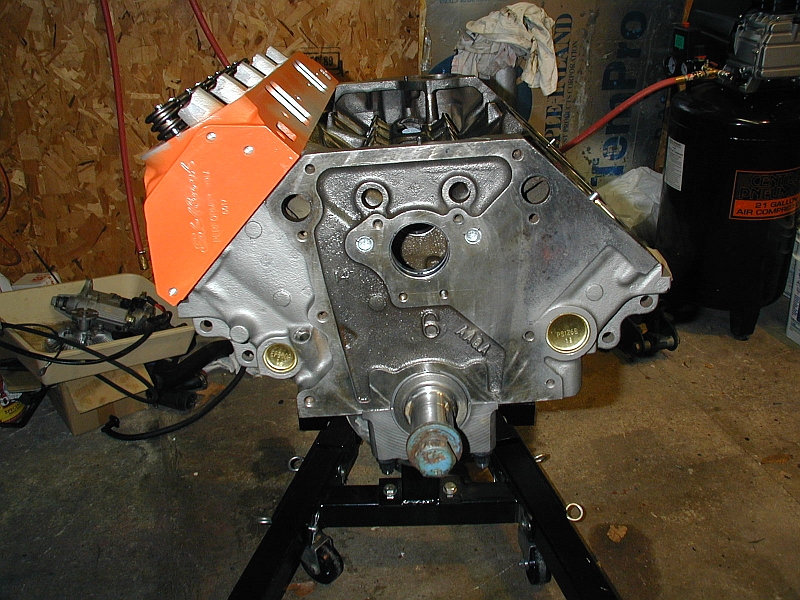

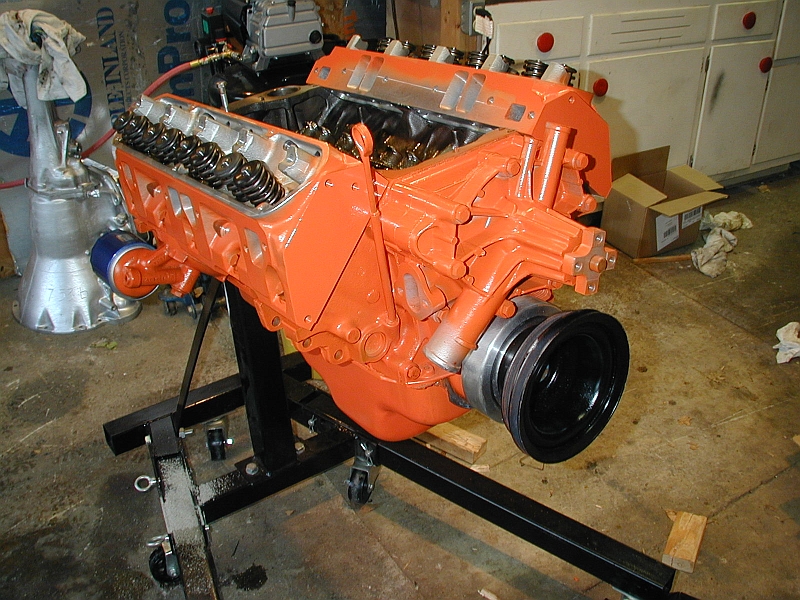

Pics of my 408 stroker. Click on the pics to enlarge.


rocker12.jpg (433755 bytes)stroker22.jpg (461185 bytes) stroker1.jpg (343399 bytes)stroker2.jpg (364334 bytes)stroker3.jpg (449131 bytes)stroker4.jpg (449749 bytes)stroker5.jpg (430721 bytes)stroker6.jpg (345515 bytes)stroker7.jpg (419524 bytes)stroker8.jpg (455973 bytes)stroker9.jpg (392866 bytes)stroker10.jpg (460273 bytes)stroker11.jpg (419085 bytes)stroker12.jpg (454926 bytes)stroker13.jpg (445343 bytes)stroker14.jpg (469294 bytes)stroker15.jpg (483590 bytes)stroker16.jpg (459490 bytes)stroker17.jpg (438421 bytes)stroker18.jpg (463411 bytes)stroker19.jpg (470543 bytes)stroker20.jpg (471060 bytes)stroker21.jpg (451677 bytes)rocker1.jpg (322085 bytes)rocker2.jpg (350210 bytes)rocker3.jpg (469159 bytes)rocker4.jpg (402697 bytes)rocker5.jpg (420571 bytes)rocker6.jpg (358502 bytes)rocker7.jpg (447040 bytes)rocker8.jpg (380318 bytes)rocker9.jpg (375970 bytes)rocker10.jpg (421012 bytes)rocker11.jpg (482349 bytes)




Desktop dyno claims 497hp through headers and full exhaust.
Here's the specs on the engine:

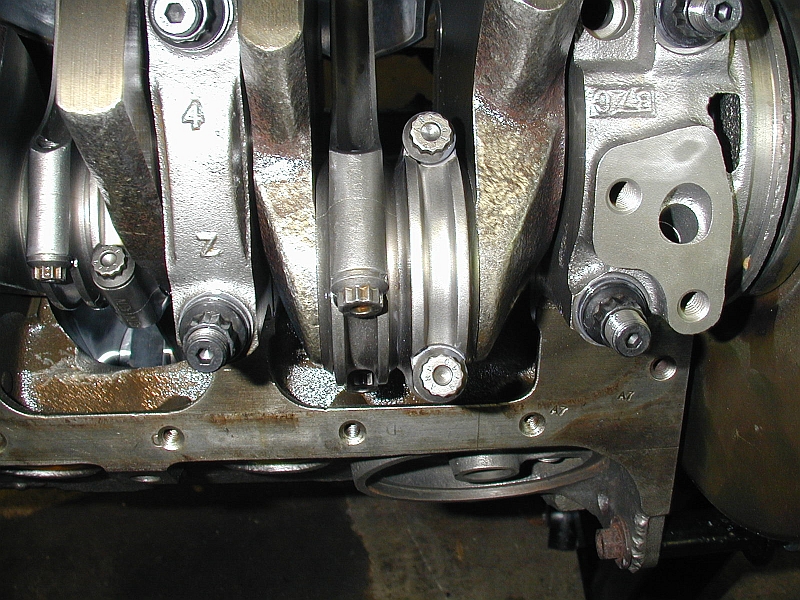

-360 block .030 or 4.030 bore X 4.00 stroke

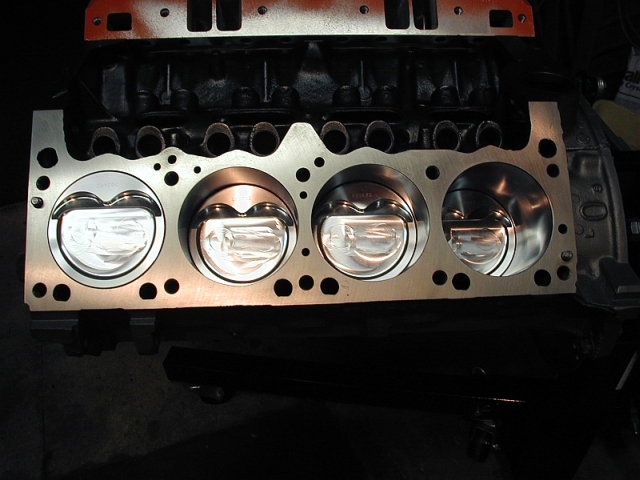

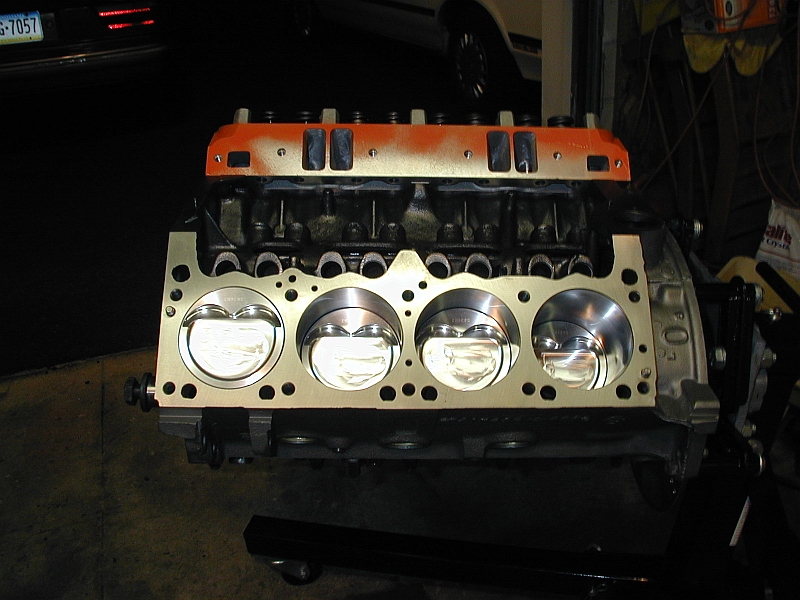

-Protru -20cc dish pistons, 10.7 to 1
-.039 head gasket thickness,
-57cc head volume

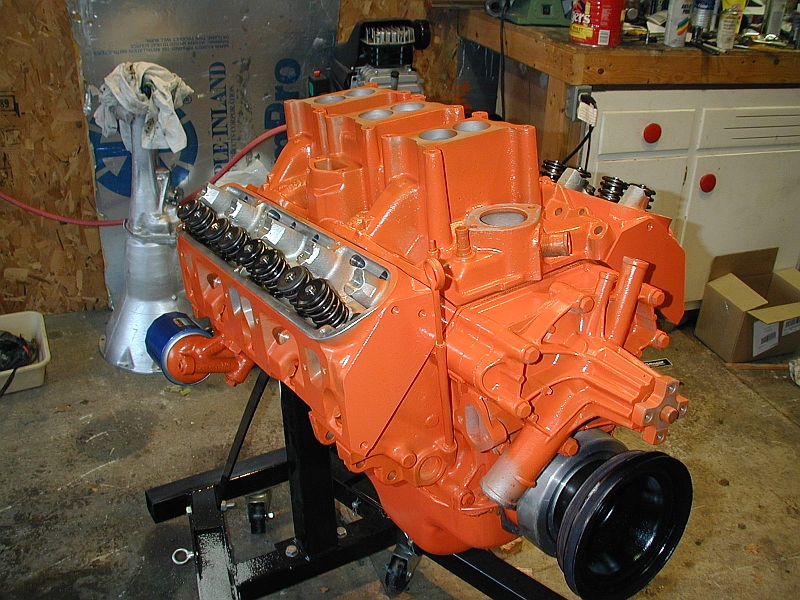

-Sixpack dual plane manifold port matched with a total of 1350 cfm's through the carbs

-XE284H, Xtreme Energy, Hyd Flat Tappet, 284/296-240/246@50-.507/.510-110 centerline

-Edelbrock Flow #'s
.100"--79.4/58.7
.200"--151.8/118.7
.300"--212.2/168.4
.400"--254.6/200.8
.450"--269.1/212.1
.500"--276.0/219.8
.550"--280.1/221.8
.600"--281.6/225.6
.650"--282.9/225.6
.700"--284.7/225.6

2400-2800 stall speed convertor through a 727
3.91 suregrip
245/60/15 radials
